Mach-O file format for red team professionals - Part 2

Learn about standard and universal Mach-O binaries and how they differ from each other.

In the last post, I covered the Mach-O file format at a high level. Before I descent into further details, lets understand what are standard and universal Mach-O binaries.

In macOS, binaries refer to compiled executable files that the system can run. The structure of these binaries depends on the type of processor architecture they support. Over the years, Apple has transitioned between multiple processor architectures, leading to the need for different types of binaries: standard binaries and universal binaries.

A standard binary is a compiled executable file that is designed to run on a single CPU architecture. For example, Intel-only binaries are compiled to run only on Intel x86_64 processors whereas ARM-only binaries are compiled to run only on Apple Silicon (ARM64) processors.

Standard binaries start with mach_header (32-bit) or mach_header_64 (64-bit). I will discuss these in more detail in upcoming posts.

You can view the mach_header of a standard binary by using otool with -h flag:

otool -h ls_x64

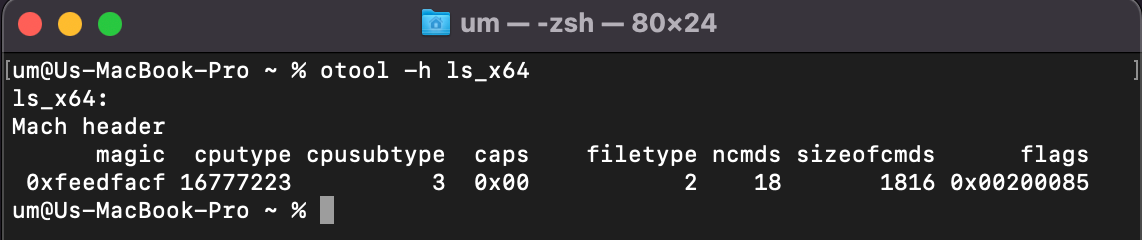

Using otool to view the mach_header of a standard binary

A universal binary (also called a fat binary) is an executable that contains code capable of running on multiple architectures within the same file, allowing it to run on different types of processors seamlessly. macOS automatically selects the appropriate architecture when executing the binary. Universal binaries allow a single app to run on both the old and new architectures without requiring users to manually choose the correct version.

You can check whether an executable is universal or standard, by using the lipo or file tool:

lipo -info /bin/ls
lipo -info ls_x64

file /bin/ls
file ls_x64

Using lipo tool to identify standard or universal (fat) binaries

Using file tool to identify standard or universal (fat) binaries

Universal binaries start with fat_header followed by fat_arch structures. The number of fat_arch structures depend on the number of architectures supported by the binary. The fat_arch structure contains information about supported architectures. fat_header and fat_arch structures are not present in standard binaries.

You can view the fat_header of a universal binary by using otool with -f flag:

otool -f /bin/ls

Using otool to view the fat_header of a universal binary

You can use the lipo tool to extract the architecture specific Mach-O binary from a universal binary:

lipo /bin/ls -thin x86_64 -output ls_x64
file ls_x64

Using lipo to extract architecture specific Mach-O binary from a universal binary

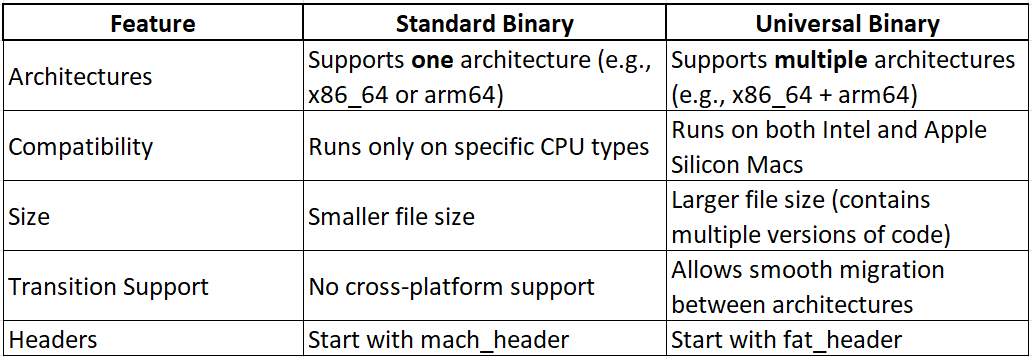

Key differences between a standard and a universal binary are as follows:

Red Team Notes
- A standard binary is a compiled executable file that is designed to run on a single CPU architecture.
- A universal binary (also called a fat binary) is an executable that contains code capable of running on multiple architectures within the same file.
